CsharpFlow

Flow - C# Coroutine Kernel

A comprehensive C# coroutine-based kernel library for .NET that provides cooperative multitasking and flow control primitives. Flow enables developers to build complex async workflows using coroutines, futures, barriers, triggers, and timers.

Key Features

• Coroutine-based execution - Cooperative multitasking without thread overhead
• Rich flow control primitives - Barriers, Triggers, Futures, Timers, Sequences
• Unity Integration - Full compatibility with Unity 4.0+ and modern versions
• Event-driven architecture - Comprehensive completion and timing event system
• Type-safe generics - Strongly typed futures and generators
• Flexible factory pattern - Easy creation and configuration of flow objects

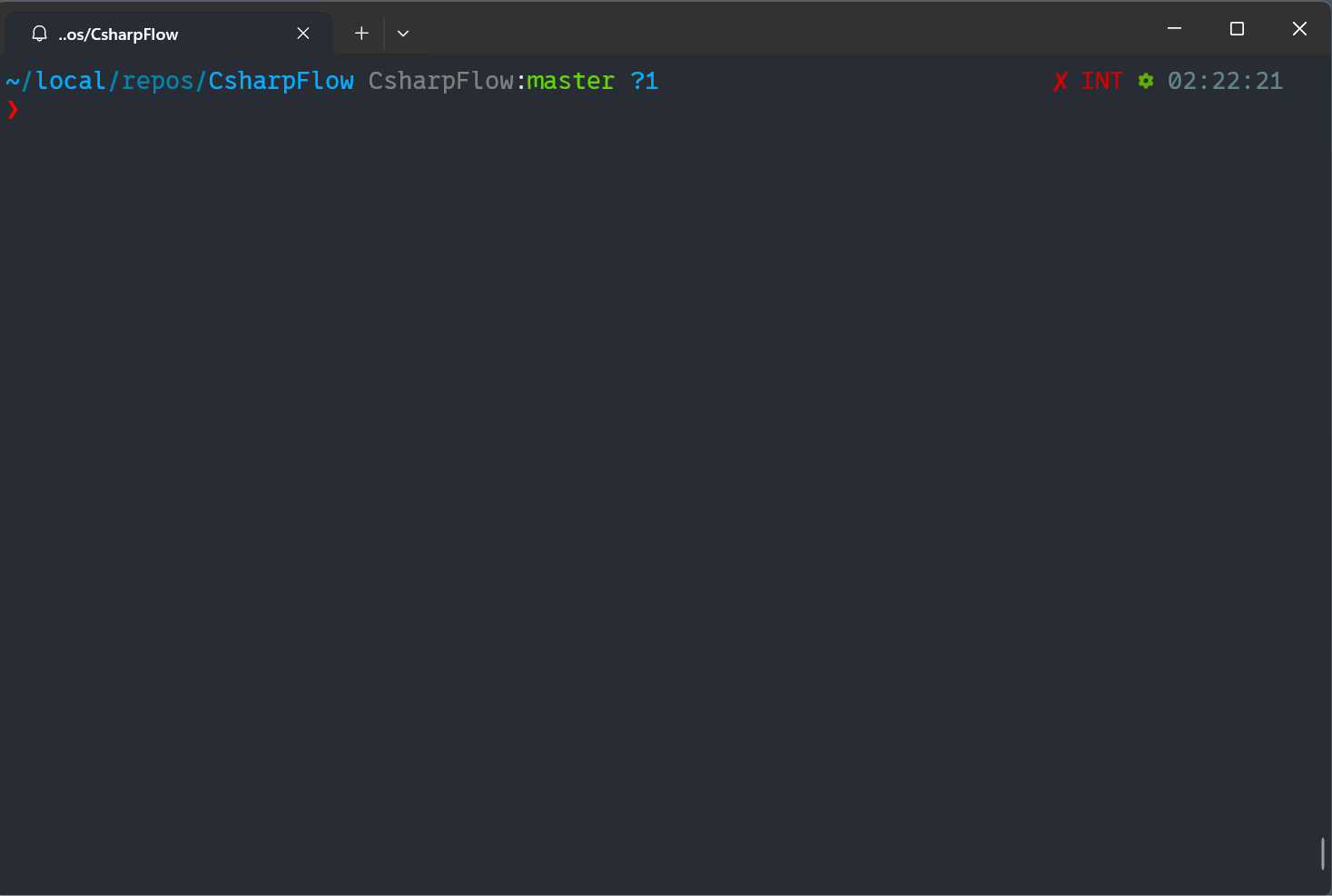

  Demo

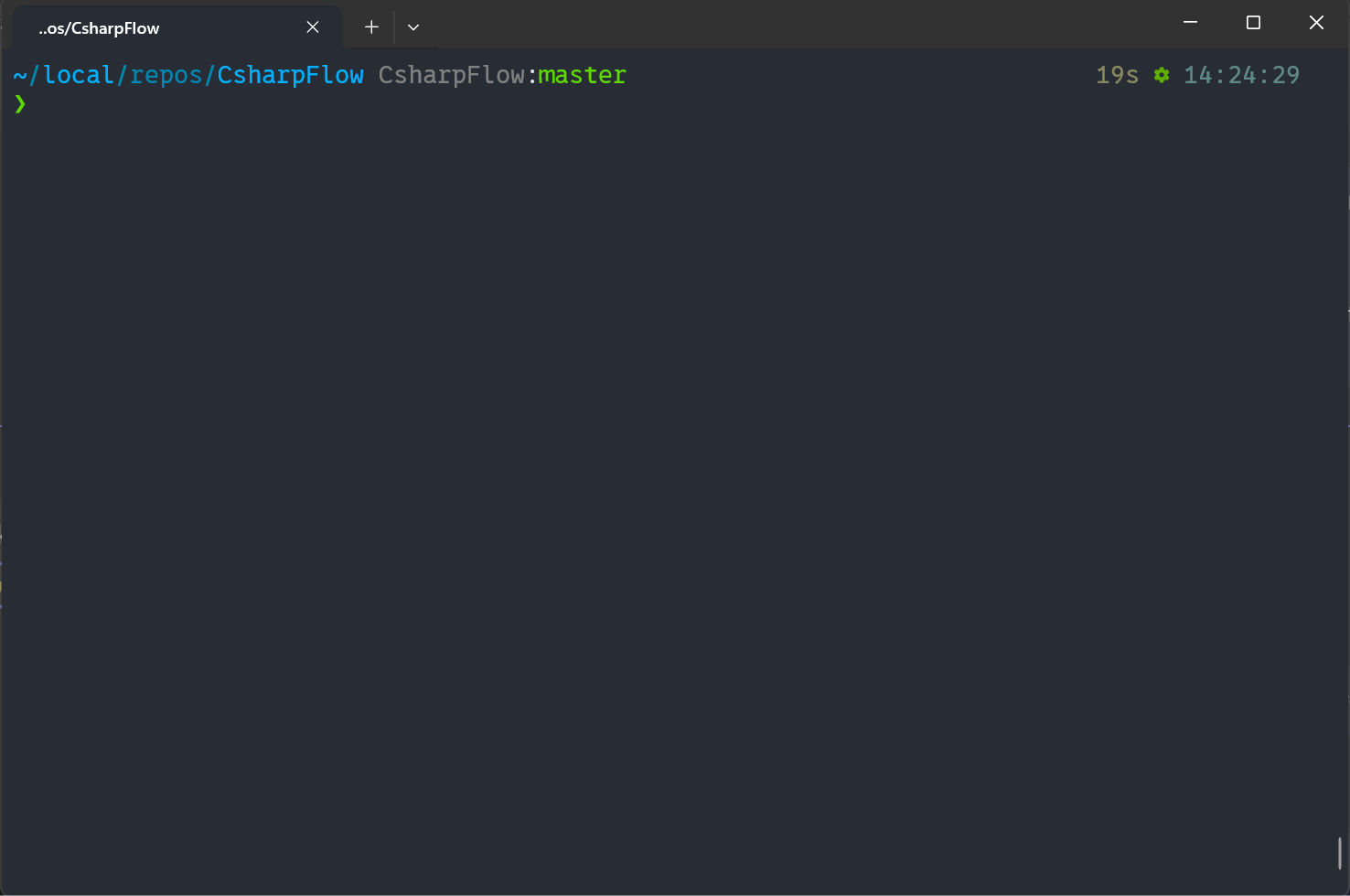

  Longer Demo



Quick Start

// Create a kernel and basic coroutine
var kernel = Create.Kernel();
var coro = kernel.Factory.Coroutine(MyCoroutine);
kernel.Root.Add(coro);
// Step the kernel in your update loop
kernel.Step(); // or kernel.Update(deltaTime)

Project Structure

The library is organized into logical folders:

CsharpFlow/
├── Interfaces/ # All interface definitions (26 files)
│ ├── IKernel.cs # Core execution engine
│ ├── IGenerator.cs # Base execution units
│ ├── ITransient.cs # Lifetime management
│ ├── IFactory.cs # Object creation
│ └── Flow control interfaces (IBarrier, ITrigger, IFuture, etc.)
├── Impl/ # Implementation classes (25 files)
│ ├── Kernel.cs # Execution engine implementation
│ ├── Generator.cs # Base generator logic
│ ├── Factory.cs # Object factory
│ └── Flow control implementations
├── Logger/ # Logging subsystem
├── TestFlow/ # Comprehensive test suite
└── Properties/ # Assembly metadata

Core Components

Kernel (Interfaces/IKernel.cs, Impl/Kernel.cs)

The central execution engine that manages time and steps all active generators. Supports both delta-time and fixed-step execution.

Generators (Interfaces/IGenerator.cs, Impl/Generator.cs)

Base execution units including coroutines, subroutines, and sequences. Support suspension, resumption, and event-driven completion.

Factory (Interfaces/IFactory.cs, Impl/Factory.cs)

Comprehensive object creation system with 40+ factory methods for all flow control types.

Flow Control Primitives

• Barriers (Interfaces/IBarrier.cs) - Wait for multiple operations to complete
• Triggers (Interfaces/ITrigger.cs) - Execute when any of multiple conditions are met
• Futures (Interfaces/IFuture.cs) - Represent values that will be available in the future
• Timers (Interfaces/ITimer.cs) - Schedule time-based execution
• Sequences (Interfaces/ISequence.cs) - Execute operations in order

  Documentation

  Current documentation is available at GamaSutra (note: formatting may be inconsistent). The original detailed post was published on AltDevBlogADay but is no longer available.

  Testing

  The tests are located in TestFlow/Editor/ for Unity compatibility. The test suite covers:

• Kernel execution and stepping
• Coroutine lifecycle management
• Barriers and synchronization primitives
• Future and timer functionality
• Channel communication
• Flow control structures Run tests using your preferred NUnit test runner. These tests serve as both validation and usage examples.

  Usage Examples

  Basic Timer Example

  private void CreateHeartbeat()
  {
    New.PeriodicTimer(TimeSpan.FromMinutes(2)).Elapsed += tr =>
    {
        Get<UserCount>("user/alive").Then(result =>
        {
            if (result.Succeeded(out var val))
            {
                _activeUsers.Value = val.Num;
                Info($"{val.Num} users online.");
            }
        });
    };
  }


  Game Loop with Sequences and Barriers

  public void GameLoop()
  {
    Root.Add(
        New.Sequence(
            New.Coroutine(StartGame).Named("StartGame"),
            New.While(() => !_gameOver,
                New.Coroutine(PlayerTurn).Named("Turn")),
            New.Coroutine(EndGame).Named("EndGame")
        ).Named("GameLoop")
    );
  }


  Complex Barrier Synchronization

private IEnumerator StartGame(IGenerator self)
{
    var start = New.Sequence(
        New.Barrier(
            WhitePlayer.StartGame(),
            BlackPlayer.StartGame()
        ).Named("Init Game"),
        New.Barrier(
            WhitePlayer.DrawInitialCards(),
            BlackPlayer.DrawInitialCards()
        ).Named("Deal Cards"),
        New.Barrier(
            New.TimedBarrier(
                TimeSpan.FromSeconds(Parameters.MulliganTimer),
                WhitePlayer.AcceptCards(),
                BlackPlayer.AcceptCards()
            ).Named("Mulligan"),
            New.Sequence(
                WhitePlayer.PlaceKing(),
                BlackPlayer.PlaceKing()
            ).Named("Place Kings")
        ).Named("Preceedings")
    ).Named("Start Game");
    start.Completed += (tr) => Info("StartGame completed");
    yield return start;
}

Debugging and Tracing

The .Named() extension method enables debugging and tracing. The library provides extensive runtime visualization to monitor kernel execution in real-time.

Architecture

Flow uses a composition-based approach combining various flow control primitives. Below are the architectural diagrams for the major systems:

Core System Architecture

graph TB
K[Kernel] --> R[Root Node]
K --> F[Factory]
K --> T[TimeFrame]
K --> L[Logger]
F --> |Creates| G[Generators]
F --> |Creates| TR[Transients]
F --> |Creates| FC[Flow Controls]
R --> |Contains| N[Node Collection]
N --> |Steps| G
G --> CO[Coroutines]
G --> SU[Subroutines]
G --> SE[Sequences]
FC --> BA[Barriers]
FC --> TI[Triggers]
FC --> FU[Futures]
FC --> TM[Timers]

Flow Control Primitives

graph LR
subgraph "Sequential Flow"
SEQ[Sequence] --> |Step 1| A[Operation A]
A --> |Step 2| B[Operation B]
B --> |Step 3| C[Operation C]
end
subgraph "Parallel Flow"
BAR[Barrier] --> PA[Operation A]
BAR --> PB[Operation B]
BAR --> PC[Operation C]
PA --> |All Complete| DONE[Continue]
PB --> DONE
PC --> DONE
end
subgraph "Conditional Flow"
TRIG[Trigger] --> TA[Operation A]
TRIG --> TB[Operation B]
TRIG --> TC[Operation C]
TA --> |Any Complete| CONT[Continue]
TB --> CONT
TC --> CONT
end

Generator Lifecycle

stateDiagram-v2
[*] --> Created: Factory.Create()
Created --> Running: Resume()
Running --> Suspended: Suspend()
Suspended --> Running: Resume()
Running --> Completed: Complete()
Completed --> [*]
Running --> Stepping: Step()
Stepping --> Running: Continue
Stepping --> Suspended: yield return
Stepping --> Completed: End of method

Barrier Synchronization

sequenceDiagram
participant K as Kernel
participant B as Barrier
participant A as Task A
participant C as Task B
participant D as Task C
K->>B: Create Barrier
K->>A: Add Task A
K->>C: Add Task B
K->>D: Add Task C
loop Step Execution
K->>B: Step()
B->>A: Step()
B->>C: Step()
B->>D: Step()
end
A->>B: Complete()
C->>B: Complete()
D->>B: Complete()
B->>K: All Tasks Complete

Future/Promise Pattern

sequenceDiagram
participant P as Producer
participant F as Future<T>
participant C as Consumer
C->>F: Create Future
C->>F: ResumeAfter(future)
Note over C: Consumer Suspended
P->>F: Set Value
F->>F: Available = true
F->>C: Resume Consumer
C->>F: Get Value

Timer Execution Flow

graph TD
T[Timer Created] --> S[Start Timer]
S --> W{Wait for Interval}
W --> |Time Elapsed| E[Trigger Elapsed Event]
E --> OS{OneShot Timer?}
OS --> |Yes| C[Complete]
OS --> |No| W
C --> D[Timer Destroyed]
subgraph "Periodic Timer"
P[Periodic] --> W2{Wait for Interval}
W2 --> |Time Elapsed| E2[Trigger Elapsed Event]
E2 --> W2
end

This architecture eliminates the need to manually track state across update calls in game loops or async workflows.

Advanced Flow Patterns

graph TD
subgraph "Complex Game Loop"
GL[Game Loop] --> INIT[Initialize]
INIT --> MENU[Main Menu]
MENU --> |Start Game| GAME[Game Session]
GAME --> TURN[Player Turn]
TURN --> AI[AI Turn]
AI --> CHECK{Game Over?}
CHECK --> |No| TURN
CHECK --> |Yes| SCORE[Show Score]
SCORE --> MENU
end
subgraph "Async Resource Loading"
LOAD[Load Resources] --> PAR[Parallel Loading]
PAR --> TEX[Load Textures]
PAR --> AUD[Load Audio]
PAR --> DAT[Load Data]
TEX --> BARRIER[Wait All]
AUD --> BARRIER
DAT --> BARRIER
BARRIER --> START[Start Game]
end

Channel Communication

sequenceDiagram
participant P as Producer
participant C as Channel<T>
participant C1 as Consumer 1
participant C2 as Consumer 2
P->>C: Write(value1)
P->>C: Write(value2)
C1->>C: Read()
C->>C1: Return value1
C2->>C: Read()
C->>C2: Return value2
Note over C: Channel manages buffering and synchronization

Error Handling Flow

stateDiagram-v2
[*] --> Running: Start
Running --> Error: Exception Thrown
Running --> Completed: Normal Completion
Error --> Retry: Retry Policy
Retry --> Running: Attempt Again
Retry --> Failed: Max Retries
Completed --> [*]
Failed --> [*]
Error --> Fallback: Fallback Strategy
Fallback --> Completed: Fallback Success
Fallback --> Failed: Fallback Failed

Installation

Unity

1. Clone or download this repository
2. Copy the Flow folder into your Unity project’s Assets folder
3. The library will be automatically recognized via the included .asmdef files

   .NET Projects

4. Clone the repository
5. Build the Flow.sln solution
6. Reference the compiled Flow.dll in your project Alternatively, you can include the source files directly in your project.

   Performance Notes

   Verbose Logging

   The Verbose() logging method evaluates all arguments even when the verbosity level would prevent output. Use caution with expensive operations:

   Verbosity = 10;
   Verbose(15, $"Result: {ExpensiveFunction()}"); // ExpensiveFunction() still executes!


For performance-critical code, check verbosity levels before logging:

if (Verbosity >= 15)
    Verbose(15, $"Result: {ExpensiveFunction()}");

Requirements

• .NET Framework 4.8 or later
• Unity 4.0+ (for Unity integration)
• NUnit (for running tests)
